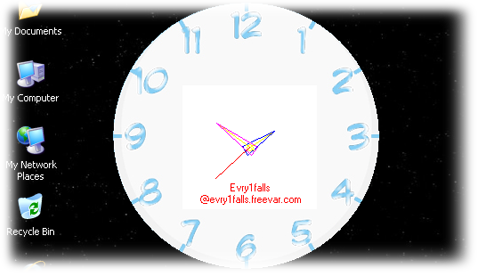

برنامج ساعة الحائط - لسطح مكتب الويندوز بالسورس كود !
السورس كود
Option Explicit '=================================================== 'Analog Clock '-------------------------------------------------- 'Creates a round(circle) shaped form 'and draws H, M, S indicators 'I made it easy to understand for VB6.0 beginers '-------------------------------------------------- 'Author: Evry1falls 'Date: 2013 'Visit : http://vb6access2003.blogspot.com 'All lines of code are explained in the Blog, Visit : 'http://vb6access2003.blogspot.com/2013/02/VB6-Analog-Clock.html '-------------------------------------------------- 'Reference: 'Larry Serflaten, Dipak Auddy 'Everything 'Google : evry1falls '=================================================== 'API to create windowless form Private Declare Function SetWindowRgn Lib "user32" (ByVal hwnd As Long, _ ByVal hRgn As Long, _ ByVal bRedraw As Boolean) As Long Private Declare Function CreateEllipticRgn Lib "gdi32" (ByVal X1 As Long, _ ByVal Y1 As Long, _ ByVal X2 As Long, _ ByVal Y2 As Long) As Long Private Declare Function DeleteObject Lib "gdi32" (ByVal hObject As Long) As Long 'API to move windowless form Private Const HTCAPTION As Long = 2 Private Const WM_NCLBUTTONDOWN As Long = &HA1 Private Declare Function SendMessage Lib "user32" Alias "SendMessageA" (ByVal hwnd As Long, _ ByVal wMsg As Long, _ ByVal wParam As Long, _ lParam As Any) As Long Private Declare Function ReleaseCapture Lib "user32" () As Long 'The length of H,M,S indicators... Private Const hWidth As Long = 1100 Private Const mWidth As Long = 1400 Private Const sWidth As Long = 1500 'Globals to store canvas(Picture Object)'s 'center co-ord. Private X As Single Private Y As Single Private PI2 As Double Private Sub Form_Load() Dim RGN As Long ' PI / 2 PI2 = Atn(1) * 2 With Me .BackColor = vbWhite .Width = Me.Width .Height = Me.Height 'Let's save the points... X = .Width / 2 Y = .Height / 2 End With 'me Label1.Caption = "Evry1falls" & vbCrLf & "@evry1falls.freevar.com" 'Make a round windowless! form... RGN = CreateEllipticRgn(0, 0, 310, 310) Call SetWindowRgn(Me.hwnd, RGN, True) Call DeleteObject(RGN) End Sub Private Sub Form_MouseDown(Button As Integer, _ Shift As Integer, _ X As Single, _ Y As Single) 'Moving the form using mouse button from any location on the form held with mouse If Button = 1 Then ReleaseCapture SendMessage Me.hwnd, WM_NCLBUTTONDOWN, HTCAPTION, ByVal 0& End If End Sub Private Sub Form_Unload(Cancel As Integer) 'Stop the timer Timer1.Enabled = False End Sub Private Sub Label1_MouseDown(Button As Integer, _ Shift As Integer, _ X As Single, _ Y As Single) 'Move form when drag the label Form_MouseDown Button, Shift, X, Y End Sub Private Sub lblClose_Click() 'Exit App. Unload Me End Sub Private Sub Timer1_Timer() Dim Angle, PX, PY, OX, OY, WX, WY Me.Cls 'Get Hr Angle... Angle = (180 - (Hour(Now) * 6) * 5 - (Minute(Now) * 6) / 12) * 3.1415 / 180 'Hr. point PX = X + (hWidth * Sin(Angle)) PY = Y + (hWidth * Cos(Angle)) 'Opposite side OX = X - (Sin(Angle) * 100) OY = Y - (Cos(Angle) * 100) 'Hand width WX = Sin(Angle + PI2) * 90 WY = Cos(Angle + PI2) * 90 'Draw Hr. hand... Me.Line (OX, OY)-(PX, PY), vbYellow ' From opposite side to pointer Me.Line -(OX + WX, OY + WY), vbBlue ' To one opposite side Me.Line -(OX - WX, OY - WY), vbBlue ' To other opposite side Me.Line -(PX, PY), vbBlue ' Back to pointer Me.Circle (X, Y), 50, vbYellow 'Get Min Angle... Angle = (180 - (Minute(Now) * 6)) * 3.1415 / 180 'Min point PX = X + (mWidth * Sin(Angle)) PY = Y + (mWidth * Cos(Angle)) 'Opposite side OX = X - (Sin(Angle) * 100) OY = Y - (Cos(Angle) * 100) 'Hand width WX = Sin(Angle + PI2) * 90 WY = Cos(Angle + PI2) * 90 'Draw Min. hand... Me.Line (OX, OY)-(PX, PY), vbYellow ' From opposite side to pointer Me.Line -(OX + WX, OY + WY), vbMagenta ' To one opposite side Me.Line -(OX - WX, OY - WY), vbMagenta ' To other opposite side Me.Line -(PX, PY), vbMagenta ' Back to pointer Me.Circle (X, Y), 50, vbYellow 'Get Sec Angle... Angle = (180 - (Second(Now) * 6)) * 3.1415 / 180 'Draw Sec. hand... Me.Line (X, Y)-(X + (sWidth * Sin(Angle)), Y + (sWidth * Cos(Angle))), vbRed End Sub
الشرح + السورس كود من هنا
