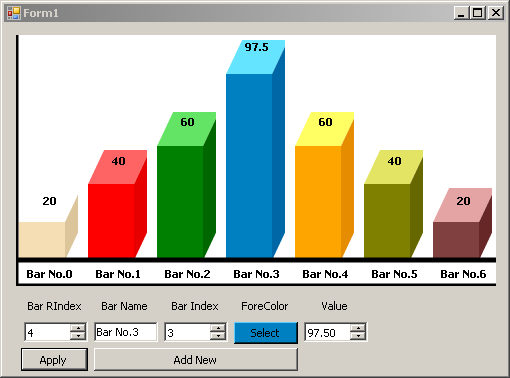

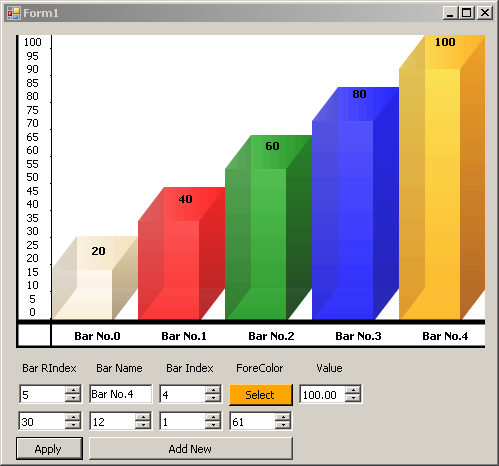

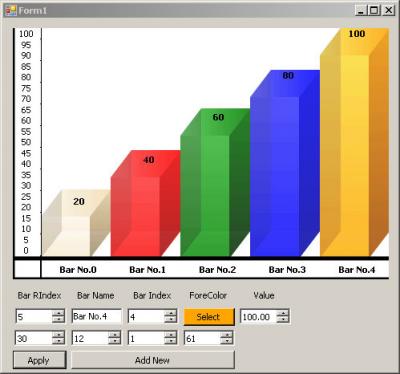

أداة رسم بيانى من تصميمى

Public Class Form1

Private Sub PictureBox1_Paint(ByVal sender As System.Object, ByVal e As System.Windows.Forms.PaintEventArgs) Handles PictureBox1.Paint

Dim m_matrix As New Matrix(1, 0, 0, -1, 0, PictureBox1.ClientSize.Height)
e.Graphics.Transform = m_matrix

Dim lgbBrush As New LinearGradientBrush(New Rectangle(0, 0, PictureBox1.ClientSize.Width, PictureBox1.ClientSize.Height), Color.Silver, Color.Azure, 90, True)

e.Graphics.FillRectangle(lgbBrush, New Rectangle(0, 0, PictureBox1.ClientSize.Width, PictureBox1.ClientSize.Height))


'رسم المحور الأفقي و المحور الراسي

e.Graphics.DrawLine(Pens.Black, 50, 30, 350, 30)
e.Graphics.DrawLine(Pens.Black, 50, 30, 50, 330)

' رسم الأبعاد علي المحور الأفقي
For x As Integer = 0 To 10
e.Graphics.DrawLine(Pens.Green, 45, 30 + (30 * x), 50, 30 + (30 * x))
e.Graphics.DrawLine(Pens.Green, 50 + (30 * x), 25, 50 + (30 * x), 30)
Next

Dim m_pens As Pen() = New Pen() {Pens.Red, Pens.Blue, Pens.Green, Pens.Red}
Dim m_GraphicsSave As GraphicsState = e.Graphics.Save()

Dim m_MatrixCloned As Matrix = m_matrix.Clone()

m_MatrixCloned.Translate(50, 30)

e.Graphics.Transform = m_MatrixCloned

'-----------------------------------------------------------------------

' رسم أي شي تريده
Dim employ1 As Integer = 300
Dim employ1Brush As New SolidBrush(Color.FromArgb(150, Color.Red))

Dim employ2 As Integer = 300 / 2
Dim employ2Brush As New SolidBrush(Color.FromArgb(150, Color.Blue))

Dim employ3 As Integer = 300 / 4
Dim employ3Brush As New SolidBrush(Color.FromArgb(150, Color.Green))

Dim employ4 As Integer = 200
Dim employ4Brush As New SolidBrush(Color.FromArgb(150, Color.Yellow))

Dim employ5 As Integer = 250
Dim employ5Brush As New SolidBrush(Color.FromArgb(150, Color.Purple))

Dim employ6 As Integer = 150
Dim employ6Brush As New SolidBrush(Color.FromArgb(150, Color.Maroon))

Dim employ7 As Integer = 275
Dim employ7Brush As New SolidBrush(Color.FromArgb(150, Color.Khaki))


e.Graphics.DrawRectangle(Pens.Black, 25, 0, 10, employ1)
e.Graphics.FillRectangle(employ1Brush, New Rectangle(25, 0, 10, employ1))

e.Graphics.DrawRectangle(Pens.Black, 55, 0, 10, employ2)
e.Graphics.FillRectangle(employ2Brush, New Rectangle(55, 0, 10, employ2))

e.Graphics.DrawRectangle(Pens.Black, 85, 0, 10, employ3)
e.Graphics.FillRectangle(employ3Brush, New Rectangle(85, 0, 10, employ3))

e.Graphics.DrawRectangle(Pens.Black, 115, 0, 10, employ4)
e.Graphics.FillRectangle(employ4Brush, New Rectangle(115, 0, 10, employ4))

e.Graphics.DrawRectangle(Pens.Black, 145, 0, 10, employ5)
e.Graphics.FillRectangle(employ5Brush, New Rectangle(145, 0, 10, employ5))

e.Graphics.DrawRectangle(Pens.Black, 175, 0, 10, employ6)
e.Graphics.FillRectangle(employ6Brush, New Rectangle(175, 0, 10, employ6))

e.Graphics.DrawRectangle(Pens.Black, 205, 0, 10, employ7)
e.Graphics.FillRectangle(employ7Brush, New Rectangle(205, 0, 10, employ7))

'-----------------------------------------------------------------------

e.Graphics.Restore(m_GraphicsSave)

'رسم التكست علي المحور الراسي
For i As Integer = 10 To 100 Step 10

m_GraphicsSave = e.Graphics.Save()
Dim m_MatrixOffsetY As New Matrix(1, 0, 0, -1, 25, 30 + (i / 10 * 30) + (Font.Height / 2))

m_MatrixCloned = m_matrix.Clone()
m_MatrixCloned.Multiply(m_MatrixOffsetY)

e.Graphics.Transform = m_MatrixCloned
e.Graphics.DrawString(i.ToString(), Font, Brushes.Black, 0, 0, StringFormat.GenericTypographic)
e.Graphics.Restore(m_GraphicsSave)

Next

' رسم التكست علي المحور الأفقي
For s As Integer = 10 To 100 Step 10

m_GraphicsSave = e.Graphics.Save()
Dim m_matrixOffsetX As New Matrix(1, 0, 0, -1, 30 + (s / 10 * 30) + (Font.Height / 2), 25)
m_MatrixCloned = m_matrix.Clone()
m_MatrixCloned.Multiply(m_matrixOffsetX)
e.Graphics.Transform = m_MatrixCloned

e.Graphics.DrawString(s.ToString(), Font, Brushes.Black, 0, 0, StringFormat.GenericTypographic)
e.Graphics.Restore(m_GraphicsSave)

Next

End Sub

Private Sub Form1_Resize(ByVal sender As System.Object, ByVal e As System.EventArgs) Handles MyBase.Resize
Invalidate()

End Sub

End Class

Imports System.Drawing.Drawing2D
