بسم الله الرحمن الرحيم
اليوم لدينا درس جديد نرى فيه مثال على لعبة غير رسومية Console-Mode
لقد تم بناء هذه اللعبة استنادا على نمط البرمجة الخادم الممتاز DoubleS
وذلك قبل بناء تكنولوجيا البرمجة بدون كود RPWI
وقد تم بناء تلك اللعبة البسيطة لاختبار وحدة الكود Code Unit من ناحية دعمها للبيئة التى تعتمد على الاحداث Event-Driven
اللعبة تسمى Earth-Wolf ويمكن ان يستخدمها لاعب واحد او لاعبين
والهدف من اللعبة هو ان يمر الاعب على جميع المساحة (الارض) المتاحة له ومن ثم يحوز على اعلى Score
بينما هو يحاول المرور على الارض كاملة اذا بالنيران تطلق عليه من خلال اربعة مدافع متحركة على جوانب الشاشة.
ونظرا لان هذا المثال هو استعراض لمفهوم من مفاهيم نمط البرمجة الجديد - الخادم الممتاز
وكان ذلك قبل بناء بيئة البرمجة بدون كود RPWI Environment فانه تم عمل هذا المثال
من خلال كتابة الكود
وهو كما يلى
*-------------------------------------------------------------------------*
*
* DoubleS Project (DoubleS Paradigm,DoubleS Framework & DoubleS Library)
*
* Copyright(C) 2006-2007, Mahmoud Fayed
*
*-------------------------------------------------------------------------*
#include "SSXHB.CH" && DoubleS Library Header File
SET PROCEDURE TO SSLIB.PRG && DoubleS Library Source Code
FUNCTION MAIN()
START DOUBLES && One Time At the start of Application
New Server EarthWolf Type Slave Server Eigen Value 000
Details:
DataUnit: && Data Unit Not Used Here
ATOM KILLER
SHELL MOVE
SUBSHELL PLACE
VAR V_STEP
VAR V_TIME
VAR V_DIR
VAR V_BOOMS
VAR V_BTIME
VAR V_NBTIME
ATOM HUMAN
SHELL MOVE
SUBSHELL PLACE
VAR SYS_KEYBOARD
VAR V_X
VAR V_Y
VAR V_HDIR
VAR V_HTIME
VAR V_GOP1
VAR V_GOP2
VAR V_X2
VAR V_Y2
VAR V_HDIR2
VAR V_HTIME2
CodeUnit:
MAIN RESISTANCE CIRCUITS\C1\B3\MYMAIN
Circuit C1
MainSwitch On
Branch B1
Switch On
Resistance KeyBuffer
Resistance NewBoom
Resistance MoveBoom
Resistance MoveKiller
Resistance CheckExit
Branch Human1
Switch On
Resistance MoveHuman1
Resistance KeyHuman1
Branch Human2
Switch On
Resistance MoveHuman2
Resistance KeyHuman2
Branch B2
Switch On
Resistance GameOver
Branch B3
Switch Off
Resistance mymain
Resistance DrawKiller
Resistance DrawHuman
Resistance DrawHuman2
Resistance DrawBOOMS
VetoUnit: && Veto Unit Not Used Here
End Of Server
Resistance Start() Address Code Unit : Circuits\c1\b1\start
Resistance KeyBuffer() Address Code Unit : Circuits\c1\b1\KeyBuffer
Resistance NewBoom() Address Code Unit : Circuits\c1\b1\NewBoom
Resistance MoveBoom() Address Code Unit : Circuits\c1\b1\MoveBoom
Resistance MoveHuman1() Address Code Unit : Circuits\c1\human1\MoveHuman1
Resistance MoveHuman2() Address Code Unit : Circuits\c1\human2\MoveHuman2
Resistance MoveKiller() Address Code Unit : Circuits\c1\b1\MoveKiller
Resistance KeyHuman1() Address Code Unit : Circuits\c1\human1\KeyHuman1
Resistance KeyHuman2() Address Code Unit : Circuits\c1\human2\KeyHuman2
Resistance CheckExit() Address Code Unit : Circuits\c1\b1\CheckExit
Resistance GameOver() Address Code Unit : Circuits\c1\b2\GameOver
Resistance mymain() Address Code Unit : Circuits\c1\b3\mymain
Resistance drawkiller() Address Code Unit : Circuits\c1\b3\drawkiller
Resistance drawhuman() Address Code Unit : Circuits\c1\b3\drawhuman
Resistance drawh2() Address Code Unit : Circuits\c1\b3\drawhuman2
Resistance drawBOOMS() Address Code Unit : Circuits\c1\b3\drawBOOMS
Server FireOn
RETURN
Resistance NewBoom Code
IF SECONDS() - V_NBTIME >= 1
V_NBTIME = SECONDS()
Y = int(V_STEP * 2.5)
X = int(V_STEP * 8)
Y2 = int((9-V_STEP) * 2.5)
X2 = int((9-V_STEP) * 8)
AADD(V_BOOMS,{Y2,6,4})
AADD(V_BOOMS,{3,X2,3})
AADD(V_BOOMS,{21,X,2})
AADD(V_BOOMS,{Y,73,1})
ENDIF
End of Resistance
Resistance MoveBoom Code
IF SECONDS() - V_BTIME >= 0.1
V_BTIME = SECONDS()
call resistance circuits\c1\b3\drawBOOMS(.t.)
if len(v_booms) > 0
for x = 1 to len(V_booms)
IF V_BOOMS[X][3] = 1 && LEFT
V_BOOMS[X][2] = V_BOOMS[X][2] - 1
ENDIF
IF V_BOOMS[X][3] = 2 && UP
V_BOOMS[X][1] = V_BOOMS[X][1] - 1
ENDIF
IF V_BOOMS[X][3] = 3 && DOWN
V_BOOMS[X][1] = V_BOOMS[X][1] + 1
ENDIF
IF V_BOOMS[X][3] = 4 && RIGHT
V_BOOMS[X][2] = V_BOOMS[X][2] + 1
ENDIF
next
for x = 1 to len(V_booms)
IF V_BOOMS[X][2] < 6
ADEL(V_BOOMS,X)
ASIZE(V_BOOMS,LEN(V_BOOMS)-1)
LOOP
ENDIF
IF V_BOOMS[X][2] > 73
ADEL(V_BOOMS,X)
ASIZE(V_BOOMS,LEN(V_BOOMS)-1)
LOOP
ENDIF
IF V_BOOMS[X][1] < 3
ADEL(V_BOOMS,X)
ASIZE(V_BOOMS,LEN(V_BOOMS)-1)
LOOP
ENDIF
IF V_BOOMS[X][1] > 21
ADEL(V_BOOMS,X)
ASIZE(V_BOOMS,LEN(V_BOOMS)-1)
LOOP
ENDIF
NEXT
call resistance circuits\c1\b3\drawBOOMS()
endif
call resistance Circuits\c1\b2\GameOver
ENDIF
End of Resistance
Resistance MoveHuman1 Code
IF SECONDS() - V_HTIME >= 0.04
V_HTIME = SECONDS()
if v_HDIR >= 1 .AND. V_HDIR <= 4
call resistance circuits\c1\b3\drawhuman(.t.)
ENDIF
IF V_HDIR = 1 && left
v_x = v_x - 1
IF V_X < 6
V_X = 6
ENDIF
ENDIF
IF V_HDIR = 2 && up
v_y = v_y - 1
IF V_Y < 3
V_Y = 3
ENDIF
ENDIF
IF V_HDIR = 3 && down
v_y = v_y + 1
IF V_Y > 21
V_Y = 21
ENDIF
ENDIF
IF V_HDIR = 4 && right
v_x = v_x + 1
IF V_X > 73
V_X = 73
ENDIF
ENDIF
if v_HDIR >= 1 .AND. V_HDIR <= 4
call resistance circuits\c1\b3\drawhuman
ENDIF
call resistance Circuits\c1\b2\GameOver
ENDIF
End of Resistance
Resistance MoveHuman2 Code
IF SECONDS() - V_HTIME2 >= 0.04
V_HTIME2 = SECONDS()
if v_HDIR2 >= 1 .AND. V_HDIR2 <= 4
call resistance circuits\c1\b3\drawhuman2(.t.)
ENDIF
IF V_HDIR2 = 1 && left
v_x2 = v_x2 - 1
IF V_X2 < 6
V_X2 = 6
ENDIF
ENDIF
IF V_HDIR2 = 2 && up
v_y2 = v_y2 - 1
IF V_Y2 < 3
V_Y2 = 3
ENDIF
ENDIF
IF V_HDIR2 = 3 && down
v_y2 = v_y2 + 1
IF V_Y2 > 21
V_Y2 = 21
ENDIF
ENDIF
IF V_HDIR2 = 4 && right
v_x2 = v_x2 + 1
IF V_X2 > 73
V_X2 = 73
ENDIF
ENDIF
if v_HDIR2 >= 1 .AND. V_HDIR2 <= 4
call resistance circuits\c1\b3\drawhuman2
ENDIF
call resistance Circuits\c1\b2\GameOver
ENDIF
End of Resistance
Resistance MoveKiller Code
IF SECONDS() - V_TIME >= 0.2
V_TIME = SECONDS()
IF V_DIR = 1
V_STEP = V_STEP + 1
ELSE
V_STEP = V_STEP - 1
ENDIF
IF V_STEP = 0
V_STEP = 1
V_DIR = 1
ENDIF
IF V_STEP = 9
V_STEP = 8
V_DIR = 0
ENDIF
set color to bg+/rb
@0,0 CLEAR TO 24,5
@0,0 CLEAR TO 2,79
@22,0 CLEAR TO 24,79
@0,74 CLEAR TO 24,79
call resistance Circuits\c1\b3\drawkiller(V_STEP,1)
call resistance Circuits\c1\b3\drawkiller(V_STEP,2)
call resistance Circuits\c1\b3\drawkiller(V_STEP,3)
call resistance Circuits\c1\b3\drawkiller(V_STEP,4)
ENDIF
End of Resistance
Resistance KeyHuman1 Code
x = SYS_KEYBOARD
if x = 4
V_HDIR = 4
endif
if x = 19
V_HDIR = 1
endif
if x = 5
V_HDIR = 2
endif
if x = 24
V_HDIR = 3
endif
End of Resistance
Resistance KeyHuman2 Code
x = SYS_KEYBOARD
if x = ASC('D') .OR. x = ASC('d')
V_HDIR2 = 4
endif
if x = ASC('A') .or. x = ASC('a')
V_HDIR2 = 1
endif
if x = ASC('W') .or. x = ASC('w')
V_HDIR2 = 2
endif
if x = ASC('X') .or. x = ASC('x')
V_HDIR2 = 3
endif
End of Resistance
Resistance KeyBuffer Code
SYS_KEYBOARD = inkey()
end of resistance
Resistance CheckExit Code
x = SYS_KEYBOARD
if x = 27
set color to w/n
clear
set cursor on
quit
endif
End Of Resistance
Resistance GameOver Code
IF .NOT. LEN(V_BOOMS) = 0
FOR X = 1 TO LEN(V_BOOMS)
IF V_BOOMS[X][1] = V_Y .AND. V_BOOMS[X][2] = V_X
SAVE SCREEN TO OLDSCR
SET COLOR TO W/R
CLEAR
@12,30 SAY "Game Over Player 1 "
sleeptime 1
RESTORE SCREEN FROM OLDSCR
WITH CIRCUIT C1
WITH BRANCH HUMAN1
SET SWITCH OFF
END WITH BRANCH
END WITH CIRCUIT
V_X = 0
V_Y = 0
V_GOP1 = .T.
P1 = 0
P2 = 0
FOR Y = 1 TO LEN(MYEARTH)
FOR T = 1 TO LEN(MYEARTH[Y])
IF MYEARTH[Y][T] = 1
P1 = P1 + 1
ENDIF
IF MYEARTH[Y][T] = 2
P2 = P2 + 1
ENDIF
NEXT
NEXT
Endif
IF V_BOOMS[X][1] = V_Y2 .AND. V_BOOMS[X][2] = V_X2
SAVE SCREEN TO OLDSCR
SET COLOR TO W/R
CLEAR
@12,30 SAY "Game Over Player 2 "
sleeptime 1
WITH CIRCUIT C1
WITH BRANCH HUMAN2
SET SWITCH OFF
END WITH BRANCH
END WITH CIRCUIT
RESTORE SCREEN FROM OLDSCR
V_X2 = 0
V_Y2 = 0
V_GOP2 = .T.
P1 = 0
P2 = 0
FOR Y = 1 TO LEN(MYEARTH)
FOR T = 1 TO LEN(MYEARTH[Y])
IF MYEARTH[Y][T] = 1
P1 = P1 + 1
ENDIF
IF MYEARTH[Y][T] = 2
P2 = P2 + 1
ENDIF
NEXT
NEXT
Endif
NEXT
ENDIF
if V_GOP1 = .T. .and. V_GOP2 = .T.
P1 = 0
P2 = 0
FOR X = 1 TO LEN(MYEARTH)
FOR T = 1 TO LEN(MYEARTH[X])
IF MYEARTH[X][T] = 1
P1 = P1 + 1
ENDIF
IF MYEARTH[X][T] = 2
P2 = P2 + 1
ENDIF
NEXT
NEXT

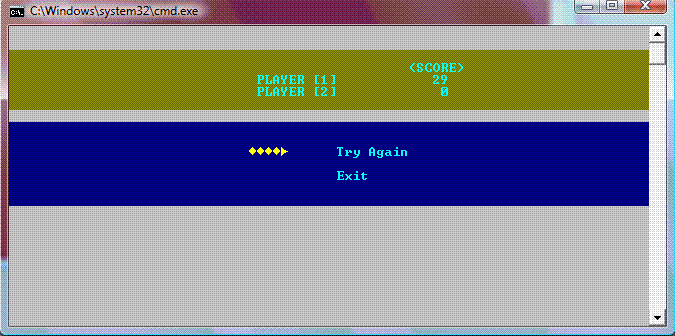

set color to w/w
clear
set color to bg+/gr,gr+/gr
@ 2,0 clear to 6,79
@3,45 say " (SCORE)"
@4,30 say " PLAYER [1] "
@4,45 say STR(P1)
@5,30 say " PLAYER [2] "
@5,45 say STR(P2)
set color to bg+/B,gr+/b
@ 8,0 clear to 14,79
@10,40 say " Try Again "
@12,40 say " Exit "
set color to b/B,gr+/b
@10,30 prompt ""
@12,30 prompt ""
menu to cont
if cont = 1
V_GOP1 = .f.
V_GOP2 = .f.
WITH CIRCUIT C1
WITH BRANCH HUMAN2
SET SWITCH ON
END WITH BRANCH
END WITH CIRCUIT
WITH CIRCUIT C1
WITH BRANCH HUMAN1
SET SWITCH ON
END WITH BRANCH
END WITH CIRCUIT
release all
call resistance circuits\c1\b3\mymain
else
SYS_KEYBOARD = 27
call resistance Circuits\c1\b1\CheckExit
endif
ENDIF
End Of Resistance
Resistance mymain Code
set color to w/w
clear
set color to bg+/gr,gr+/gr
@ 2,0 clear to 6,79
@3,17 SAY " DoubleS (Super Server) Programming Paradigm "
@4,17 SAY " Copyright(C) 2006-2007, Mahmoud Fayed "
@5,17 SAY " Simple Game : EarthWolf v1.0 "
set color to bg+/B,gr+/b
@8,0 clear to 16,79
@10,30 say " One Player "
@12,30 say " Two Players W=Up D=Right A= Left X=Down"
@14,30 say " Exit "
set color to b/B,gr+/b
@10,20 prompt ""
@12,20 prompt ""
@14,20 prompt ""
menu to mainmenu
if mainmenu = 3
set color to w/n
clear
set cursor on
quit
endif
SET COLOR TO W/B
CLEAR
SET COLOR TO BG+/RB
call resistance Circuits\c1\b3\drawkiller(5,1)
call resistance Circuits\c1\b3\drawkiller(5,2)
call resistance Circuits\c1\b3\drawkiller(5,3)
call resistance Circuits\c1\b3\drawkiller(5,4)
SET CURSOR OFF
SELECT ADDRESS KILLER:MOVE:PLACE
LOAD ACTIVE SUBSHELL FROM MEMORY
V_TIME = SECONDS()
V_STEP = 5
V_DIR = 1
V_BOOMS = {}
V_BTIME = SECONDS()
V_NBTIME = SECONDS()
SELECT ADDRESS HUMAN:MOVE:PLACE
LOAD ACTIVE SUBSHELL FROM MEMORY
V_X = 40
V_Y = 10
V_HDIR = 0
V_HTIME = SECONDS()
V_GOP1 = .F.
if .not. mainmenu = 1
V_GOP2 = .F.
V_X2 = 39
V_Y2 = 10
V_HDIR2 = 0
V_HTIME2 = SECONDS()
Call resistance circuits\c1\b3\drawhuman2
else
WITH CIRCUIT C1
WITH BRANCH HUMAN2
SET SWITCH OFF
END WITH BRANCH
END WITH CIRCUIT
V_GOP2 = .t.
V_X2 = 0
V_Y2 = 0
endif
PUBLIC MYEARTH
MYEARTH = {}
SYS_KEYBOARD = 0
Call resistance circuits\c1\b3\drawhuman
* 3 6 21 73
FOR X = 3 TO 21
AADD(MYEARTH,{0,0,0,0,0,0,0,0,0,0,;
0,0,0,0,0,0,0,0,0,0,;
0,0,0,0,0,0,0,0,0,0,;
0,0,0,0,0,0,0,0,0,0,;
0,0,0,0,0,0,0,0,0,0,;
0,0,0,0,0,0,0,0,0,0,;
0,0,0,0,0,0,0,0,0,0,;
0,0,0})
NEXT
End of Resistance
Resistance drawkiller Code
parameters step,place
local myform,myform2,myform3,myform4
set color to bg+/rb
if place = 1 .or. place = 4
step2 = 2.5 * (9-step)
step = 2.5 * step
else
step2 = 8 * (9-step)
step = 8 * step
endif
myform = {"±± ",;
"±±±±³-",;
"±± "}
myform2= {"±±±±±",;
" ±³± ",;
" | "}
myform3= {" | ",;
" ±³± ",;
"±±±±±"}
myform4 ={" ±±",;
"-³±±±±",;
" ±± "}
if place = 1 && left
@step2,0 say myform[1]
@step2+1,0 say myform[2]
@step2+2,0 say myform[3]
endif
if place = 2 && up
@0,step2 say myform2[1]
@1,step2 say myform2[2]
@2,step2 say myform2[3]
endif
if place = 3 && down
@22,step say myform3[1]
@23,step say myform3[2]
@24,step say myform3[3]
endif
if place = 4 && right
@step,74 say myform4[1]
@step+1,74 say myform4[2]
@step+2,74 say myform4[3]
endif
End of Resistance
Resistance drawhuman Code
parameters phide
local myform,myform2,myform3,myfrom4
set color to bg+/b
if phide = .t.
@v_y,v_x say "±"
if .not. v_x = 0 .and. .not. v_y = 0
MYEARTH[V_Y-2][V_X-5] = 1
endif
else
myform = ""
myform2 = ""
myform3 = ""
myform4 = ""
if v_hdir = 1 && left
@v_y,v_x say myform4
endif
if v_hdir = 2 && up
@v_y,v_x say myform2
endif
if v_hdir = 3 && down
@v_y,v_x say myform3
endif
if v_hdir = 4 .or. v_hdir = 0 && right
@v_y,v_x say myform
endif
endif
End of Resistance
Resistance drawh2 Code
parameters phide
local myform,myform2,myform3,myfrom4
set color to gr+/b
if phide = .t.
if .not. v_x2 = 0 .and. .not. v_y2 = 0
@v_y2,v_x2 say "±"
MYEARTH[V_Y2-2][V_X2-5] = 2
endif
else
myform = ""
myform2 = ""
myform3 = ""
myform4 = ""
if v_hdir2 = 1 .or. v_hdir2 = 0 && left
@v_y2,v_x2 say myform4
endif
if v_hdir2 = 2 && up
@v_y2,v_x2 say myform2
endif
if v_hdir2 = 3 && down
@v_y2,v_x2 say myform3
endif
if v_hdir2 = 4 && right
@v_y2,v_x2 say myform
endif
endif
End of Resistance
Resistance drawbooms Code
parameters phide
local x
set color to n/b
if phide = .t.
if len(v_booms) > 0
for x = 1 to len(V_booms)
myy = v_booms[x][1] - 2
myx = v_booms[x][2] - 5
if myy >= 1 .and. myx >= 1
if MYEARTH[myy][myx] = 0
@v_booms[x][1],v_booms[x][2] say " "
endif
if MYEARTH[myy][myx] = 1
set color to bg+/b
@v_booms[x][1],v_booms[x][2] say "±"
endif
if MYEARTH[myy][myx] = 2
set color to gr+/b
@v_booms[x][1],v_booms[x][2] say "±"
endif
endif
next
endif
else
if len(v_booms) > 0
for x = 1 to len(V_booms)
@v_booms[x][1],v_booms[x][2] say "غ"
next
endif
endif
End of Resistance
